Trend Hinge Jig

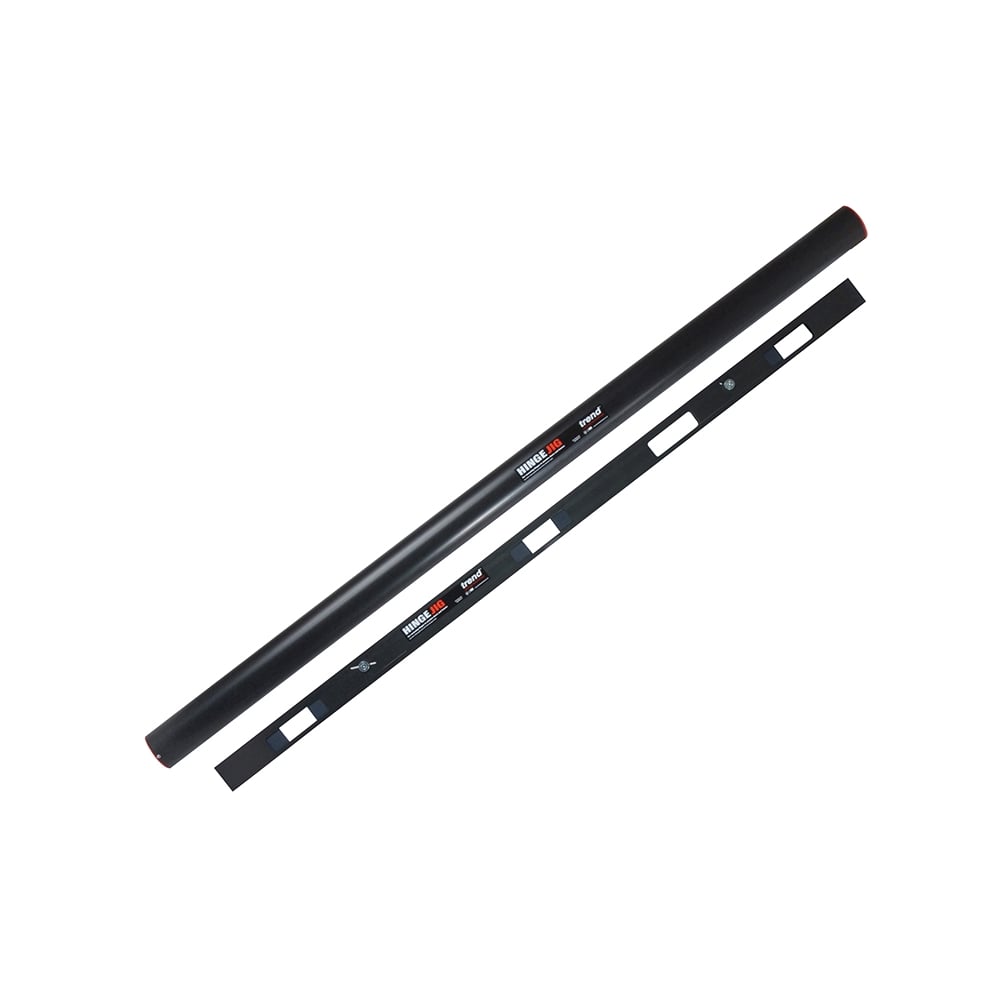

• The Trend Hinge Jig is a portable template set designed for recessing hinges in wooden doors and frames. Used on-site and in joinery shops to increase productivity with excellent results. Four apertures for fire door requirements. No need for marking out in the conventional way. Quick and simple to set-up as the hinge is used as the pattern. Clean and accurate recesses are achieved every time. Suitable for timber based doors and square butt hinges. Use with a light duty router with 1/4inch collet. Long reach router cutter required, 12 mm diameter with 70 mm overall length. Angled position slots to prevent creep. Patent No. GB2285410. Hinge Sizes Possible: Length - 67 mm Min (2 5/8in)- 127 mm Max (5in) Width - 9.5 mm Min (3/8in)- 35 mm Max (1 3/8in) Door Sizes Possible: Height - 1955 mm Min ( 6ft 5in)- 2032 mm Max (6ft 10in) Thickness - 16 mm Min (5/8in- 44 mm Max Includes: 4 x Apertures 2 x Bradawls 1 x 16 mm Guide bush 1 x T-Handle hex key 1 x 4 mm Spacing Gauge 1 x Plastic Storage Tube
